This Computerized independent control needle(ICN)tufting machine is widely used for making all kinds of over-tufting carpets and pile cutting&embroidery on textile fabrics.
Introduction
This Computerized independent control needle (ICN) tufting machine is widely used for making all kinds of over-tufting carpets and pile cutting&embroidery on textile fabrics.
The design transforms to the signal of each line through computer, then input to the main machine. Each air cylinder controls each single needle to tuft according to the signal. It can also do repeat designs on width.
It is controlled by industrial computer, easy operation, high efficiency and wide application.
Parameters

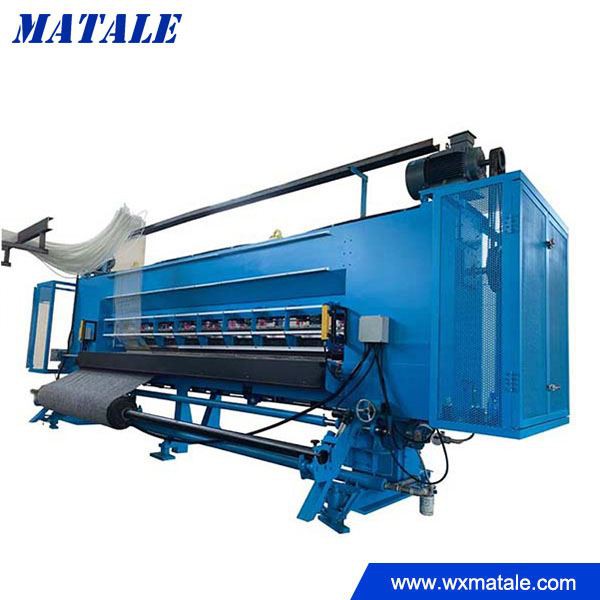

Machine Name: Multi-needle ICN tufting machine
Machine size: 2m model L*W*H 5.9*1.5*2.7m
4m model L*W*H 7.8*1.5*2.7m
Working width: 2m or 4m
Gauge: 3/16" or 5/32"
Pile height: 6-18mm
Mechanical speed: 600 RPM
Stitch density: 25-60 stitches/10cm
Total power: 2m 40kw
4m 55kw
Servo motor + planetary reducer feeding of primary back
Puller roller controlled by servo motor
Pattern control software
Operation setting on touch screen
Product photos

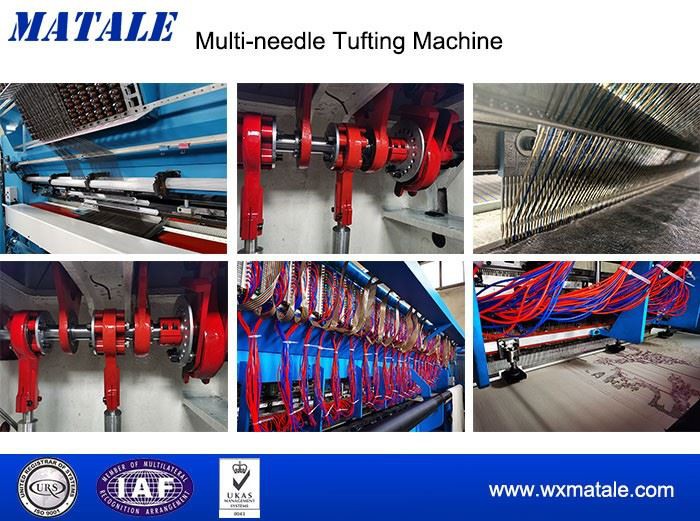

Machine Feature
● Double Needle Tufting Machine,Stable structure with no internal stress
● Deformation by using cast frame and overall annealing treatment.
● Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.
● Equipped with lifting rings , easy for movement.
● Air cylinder device for backing roll loading.
● High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .
● By using 4 individual point s crews , machine can stand on all types of floors .
● Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.
● Overload protection, cover protections , pull wire emergency stop switch.
● Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.
Our Company
Wuxi Matale Industry&Tech Co.,ltd, established in April 2010, is the leading manufacturer of tufting machines and ancillary equipment.
We are capable of producing highly specialized tufting machines from basic plain loop, plain cut series, multi loop series, LCL FRS series, ICN series and other patterning tailer-made machines for all applications from wall to wall, residential and contracted tiles.
For more information on our machines, please visit our website www.wxmatale.com.
FAQ
Q: How to get a quote for a carpet tufting machine?
A: You need to provide carpet type(show us by photo), provide working width, gauge, pile height info etc.
Q: who are we?
A: We are professional carpet machinery designer and manufacture. We can provide whole production line for carpet making. Also provide spare parts service for the whole life.
Q : Warranty?
A : One year. Will offer after sell service in whole life of machine use under compensation after one year.
Q: how can we guarantee quality?
A: 1) Our engineers are all skilled and full of experience. And management with ISO9001 quality system.
2) Always final Inspection and test running before shipment.
