This Level cut multi loop FRS tufting equipment makes patterned designs by independently control the feeding quantity of each yarn, thus achieving the high and low pile effect. It can make two or three heights on one carpet.
Description
This Level cut multi loop FRS tufting equipment makes patterned designs by independently control the feeding quantity of each yarn, thus achieving the high and low cut pile effect. It can make two or three heights on one carpet.

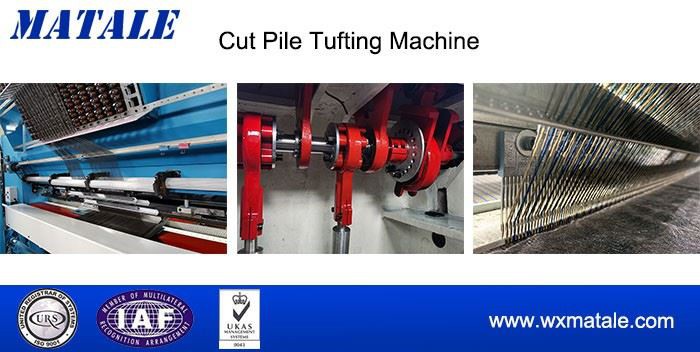

Machine Photo

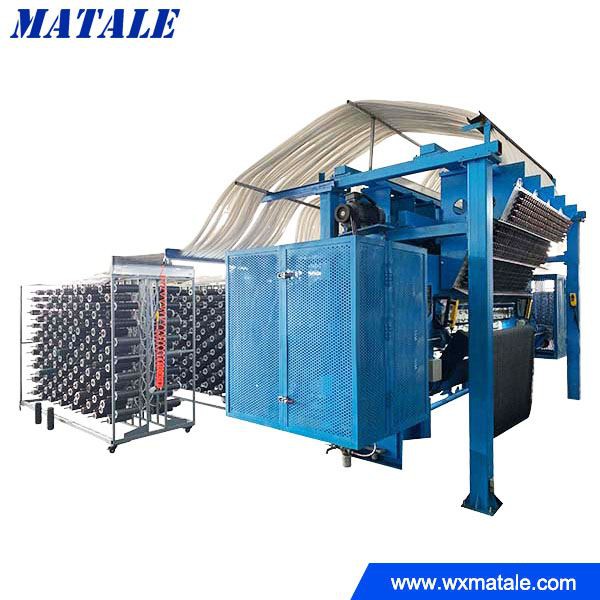

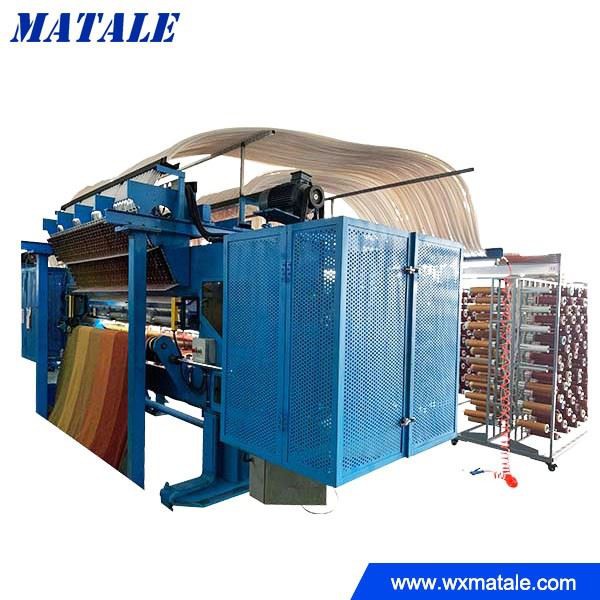

Level cut multi loop tufting machine
Level cut multi loop tufting machine

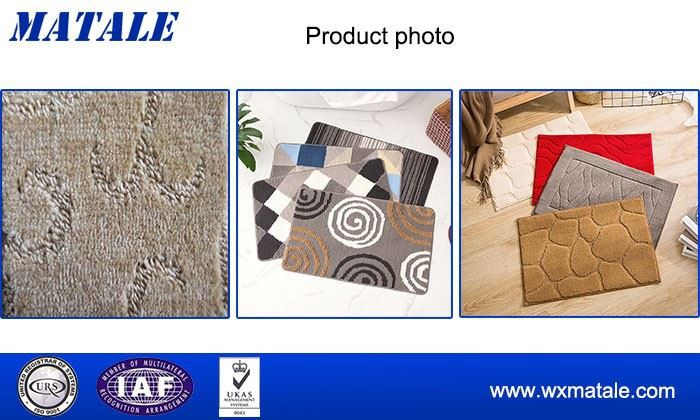

Item photo
Door mat/bathmat
Door mat/bathmat
rug
Parameters
Machine Name: Level cut multi loop FRS tufting machine
Machine Size:
2m L*W*H7.8*2.4m*3.3m
4m L*W*H6*2.4m*3.3m
Working width: 1.25m or 2m or 4m
Gauge: 1/8" or 5/32"
Loop pile height range: 6-22mm
Mechanical speed: 600RPM
Stitch density: 25-60 stitches/10cm
Total power: 2m 30kw
4m 40kw
Optional sliding needle bar or jute mover
Servo motor + planetary reducer feeding of primary back
Puller roller controlled by servo motor
Pattern control software
Operation setting on touch screen
Machine Feature
● Level cut multi loop FRS tufting machine, stable structure with no internal stress deformation by using cast frame and overall annealing treatment.
● Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.
● Equipped with lifting rings , easy for movement.
● Air cylinder device for backing roll loading.
● High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .
● By using 4 individual point s crews , machine can stand on all types of floors .
● Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.
● Overload protection, cover protections , pull wire emergency stop switch.
● Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.
Why choose us
First, we are professional carpet machinery designer and manufacture. We can provide whole production line for carpet making. Also provide spare parts service for the whole life.
Second, our engineers are all skilled and full of experience. And management with ISO9001 quality system. Always doing final Inspection and test running before shipment.
Third, with advanced technical improvement, as one of the representative of China made tufting machine manufacture, our tufting machine achieves high level quality and perfect performance compared with top brand worldwide, but very competitive price.
